Pig Iron – Types, Specifications & Applications
Pig Iron is a basic raw material used in the production of steel and cast iron. Manufactured by smelting iron ore in a blast furnace, it forms the foundation of several metallurgical processes. India, with its strong infrastructure in mining and metallurgy, has emerged as a reliable supplier of pig iron to global markets.
There are three main types of Pig Iron, each with specific characteristics suited to particular applications:
1. Basic Pig Iron (Steel Grade Pig Iron)
Specification (Typical Range):
- Carbon: 3.5%–4.5%
- Silicon: 0.5%–1.5%
- Manganese: 0.3%–1.2%
- Sulphur: < 0.05%
- Phosphorus: < 0.10%
Applications
- Used primarily in steel-making furnaces
- Acts as a charge material for electric arc furnaces
- Helps control chemistry in steel production due to its low sulfur and phosphorus content
Foundry Pig Iron (Foundry Grade)
Specification (Typical Range):
- Carbon: 3.8%–4.5%
- Silicon: 1.5%–2.5%
- Manganese: 0.5%–1.5%
- Sulphur: < 0.06%
- Phosphorus: 0.10%–0.25%
Applications
- Ideal for grey iron castings and general foundry work
- Used in manufacturing automotive parts, pumps, valves, and pipes
- Preferred by foundries due to higher silicon and carbon content which enhances fluidity
Special Grade Pig Iron (SG Iron Grade / Nodular Iron Grade)
Specification (Typical Range):
- Carbon: 3.8%–4.5%
- Silicon: 1.8%–2.8%
- Manganese: 0.2%–0.5%
- Sulphur: < 0.03%
- Phosphorus: < 0.08%
Applications
- Mainly used for ductile iron castings (SG Iron)
- Suitable for pressure-resisting components like hydraulic cylinders, pipes, and machinery
- Ensures better mechanical properties and nodularity when treated with magnesium
Export Readiness & Supply Capability
Global buyers prefer Indian pig iron for its consistency in quality, competitive pricing, and availability in large volumes. Over the years, a few companies based in resource-rich zones with strong linkages to reputed producers and logistical capabilities have developed a solid track record in regular export of all three grades of pig iron. These firms, operating closely with blast furnace operators and inland logistics networks, ensure timely deliveries and tailored specifications as per customer requirements.
Due to strategic sourcing relationships and understanding of port-side movement, companies like ours are able to meet the high-volume and high-frequency demands of international clients – especially across markets like the Middle East, South East Asia, and parts of Europe.
Product Form Available

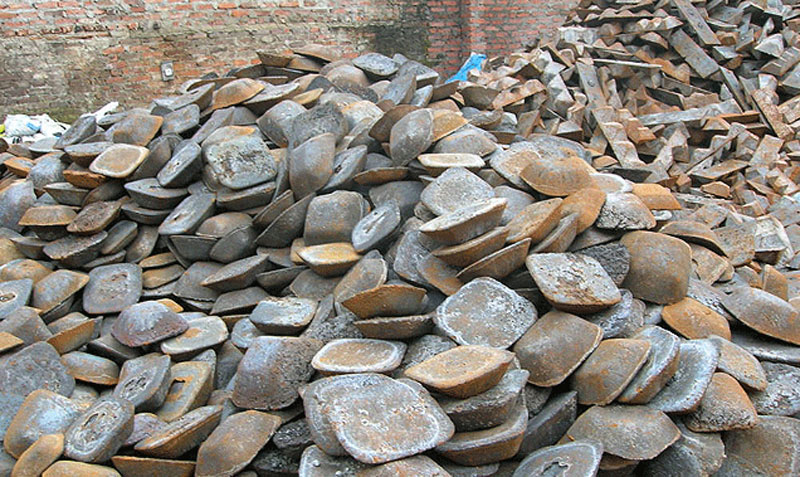

- Pigs (15–20 kg)
- Lumps (custom sizes available)
- Bulk packing in 1 MT jumbo bags or loose in containers
